Pressure Filter

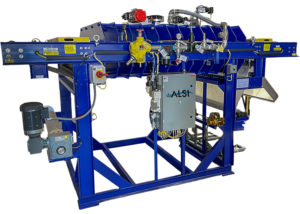

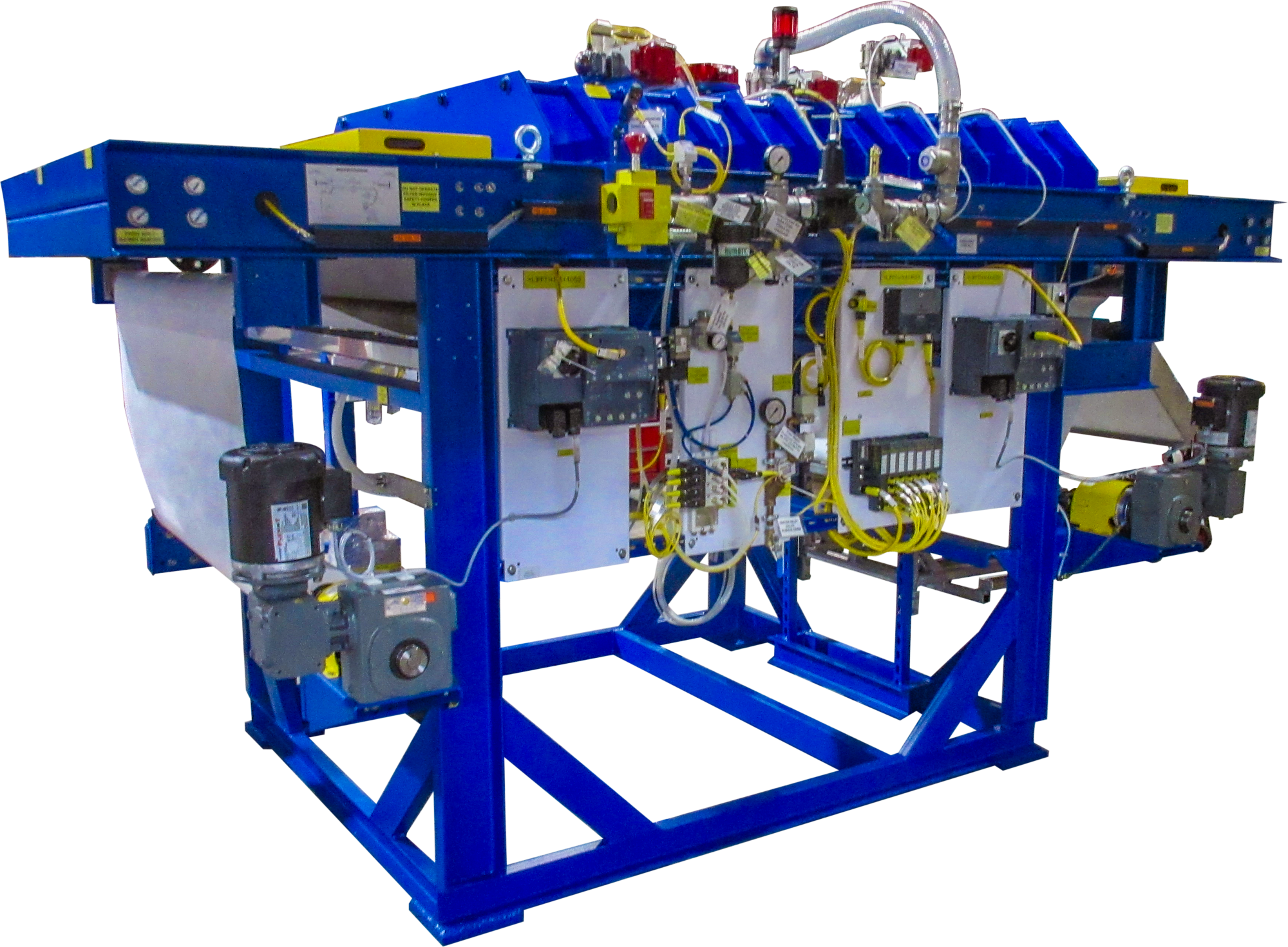

ALSI Indexing Pressure Filter

The ALSI Pressure Filter offers a high-performance, yet simple liquid filtration solution engineered with unique features. Our innovative design ensures the efficient removal of fine particles with minimal operator intervention and allows the system to process a higher flow rate per square foot of filter area than comparable gravity filters. Our design eliminates the need for complex components like carrier belts, pulleys, and mobile filter chambers, resulting in a more robust system over competing technologies.

Automatic Filter Cycle

Fully automated filtration through dry cake discharge, eliminating the need for manual operation

Cost-Effective

Cost-effective option for filtration of non-hazardous applications

Media Rewind

Reduce OPEX with optional filter media rewind system

ALSI Pressure Filters - Used in a Wide Array of Applications:

  • Alkaline/caustic cleaner baths
  • Inclined plate Lamella clarifier overflows
  • Coolant filtration
  • Filter press replacement
  • Phosphate pre treatment stage
  • Plating baths
  • Waste water treatment systems



Model No. Filter Area Media Width Dimensions
(L x W x H)		 Nominal Flow
sq. ft. m2 in. cm ft. m GPM m3/h
ALPF4.5 4.5 0.418 12.75″ 32.38 9 x 3 x 5.5 2.7 x 0.9 x 1.7 90 20
ALPF9 9 0.836 25.5″ 64.77 9 x 4 x 5.5 2.7 x 1.2 x 1.7 180 41
ALPF15 15 1.39 36″ 91 9.5 x 5.5 x 6 2.9 x 1.7 x 1.8 300 68
ALPF21 21 1.95 51″ 130 9.5 x 6.5 x 6 2.9 x 1.98 x 1.8 420 95
ALPF28 28 2.6 51″ 130 11 x 6.5 x 6 3.35 x 1.95 x 1.8 560 127
ALPF40 40 3.72 51″ 130 14 x 6.5 x 6 4.26 x 1.98 x 1.8 800 182





Standard feature include:

  • PLC controls with available process interface
  • Fail safe chamber operation
  • Automatic chamber blow down
  • 100% unattended operation
  • Monitoring of critical set points and valve positions

Optional features include:

  • Three way inlet valve
  • Media re-use/reclaim
  • Acid flush system
